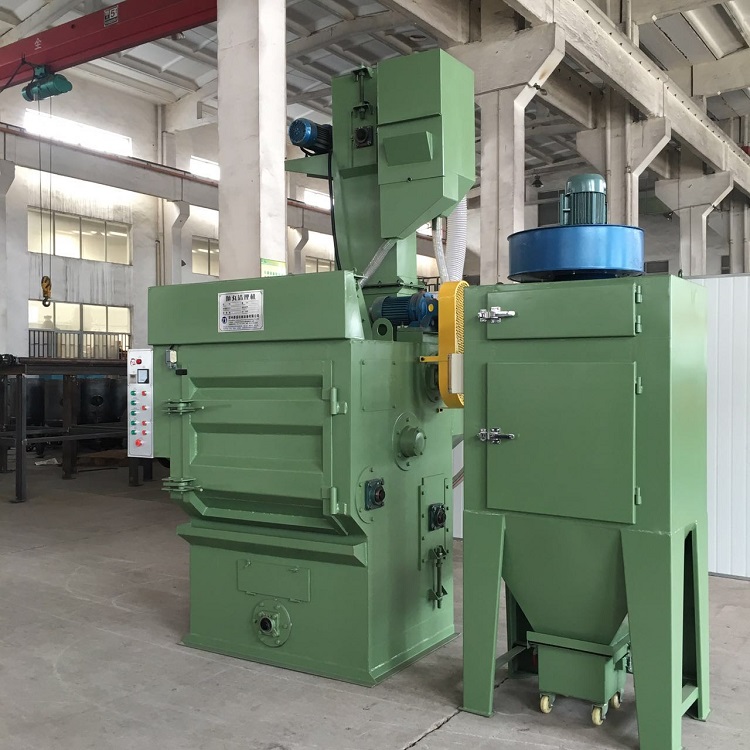

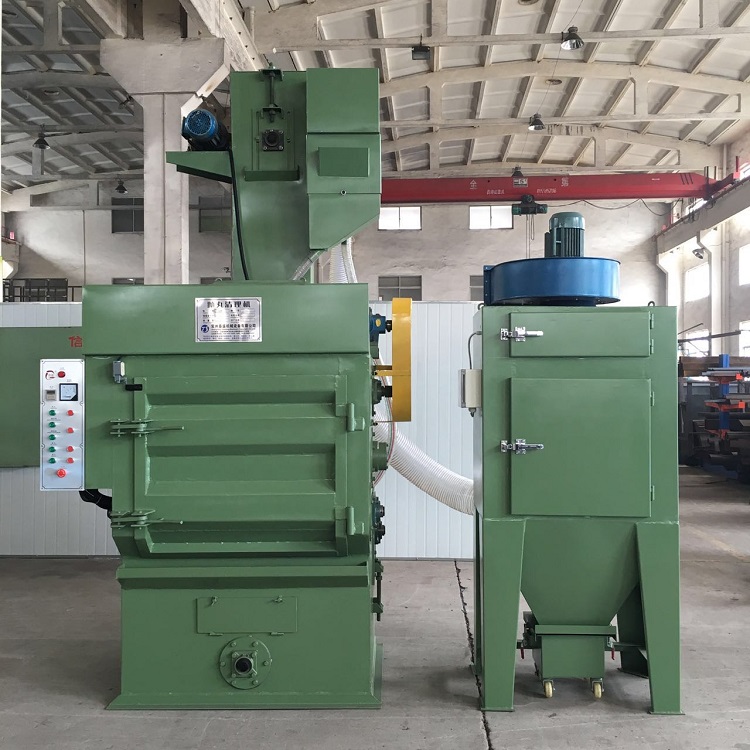

Tumble Belt Blast Machine

    • Tumble Belt Blast Machine
    • Tumble Belt Blast Machine
    • Tumble Belt Blast Machine
Product details

Application



Tumble blasting machine with rubber belt is ideal for processing mass-produced parts, which can be tumbled and exposure of all surfaces to the blasting stream, with high cleaning efficiency. It is suitable for blasting machine tool, automobile parts, spring, heat treatment products, foundry and stamping of various size, this system can be extended to a fully automatic system with the additional peripheral loading and unloading equipment.


Abrasive Available: steel shot, steel grit, stainless steel shot, steel cut wire shot and etc.

Machine Introduction



This is a small cleaning equipment, mainly composed by the cabinet, blasting system, abrasive recycle system, dust collector, electrical system and etc.

a. Blasting Cabinet         High Chrome Casting, longer Serive Time

Inside the cabinet, there equips with wearing-resistant rubber to carry the products rotate. The shell is protected by special wear-resistant alloy shield mounted on end sides of belt, which is made by highchromium iron casting.



b. TS Blast Wheel      60-300kg/min shots hit on product surface, good cleaning result


c. Door      Single swing door hanging with wear-resistant rubber to protect the door and provide good sealing. For security, there is a limit switch above the door, only after the door closed, can the blasting wheel be started.


d. Abrasive Recycle System            Sepcial design, can make sure dust and abrasive can be separated up to 99.5%


e. Cartridge Dust Collector           The dust collector has a push button to “pulse” the cartridges with a jet of compressed air between blast cycle to purge the filter. Upgrade option, the part can be programmed in PLC.


f. Electrical Control Panel         380V/50Hz/3Phase

The whole system is equipped with manual switch, electrical interlock, self-lock, fault alarm emergency stop and other safety protection functions to ensure the safe operation of the equipment.

Interlock System: there is a limit switch above the door, only after the door closed, can the blasting wheel be started.


Standard Model



Model

Q324

Q326

Q328

Qr3210

Productivity(T/h)

0.3-0.6

0.6-1.2

3-5

1.5-2.5

Batch Loading(kg)

80

200

400

600

Max.Product(kg)

5

10

15

30

Disc Dia.(mm)

400

600

800

100

Capacity(m³)

0.05

0.15

0.25

0.3

Shot Flow(kg/min)

60

100

180

300

Separate Type

Air Wash

Sieve + Air Wash

Sieve + Air Wash

Sieve + Air Wash

Air Volume(m³/h)

2000

2200

3000

5000

Power(kw)

5.84

10.85

16.5

21

Machine Size(mm)

L*W*H

1400*1350*2450

1650*1850*3400

2000*3200*4000

3900*2600*4700

Note: our equipment can be designed according to customer special requirements


Product Pictures


Before                                                                                                       After




Machine Installation and Commission


Tumble Belt Shot Blasting Machine no need pit foundation, put the machine on a flat solid ground, better to fix by foundation bolts.


For example Q326, this model will be dissemabled and packed into 6 parts, top parts of elevator, main cabinet, dust collector, fan, pipes and bucket belt (Install the machine according to our instruction book strictly)


Documents will be provided, 1set installation book, 1set user guide, 1set electrical drawing, 1set general assemble drawing.


Machine is Easy to Operate



Timer: can set shot blasting time, if the time is up, the machine will stop blasting automaticly.

Ampere: display the wheel current.

Power: light to show the power situation.


Safety  the machine has electrical interlock, self-lock, fault alarm emergency stop





How to run it,

  1. Start fan, loading products,

  2. Close the door,  turn on Belt CW. (clockwise roate)

  3. Start elevator

  4. Start blast wheel

Shot blasting time is up, blast wheel stop, unloading the products by Belt CCW(counterclockwise). Loading next batch.


When all blasting job finished every shift work, turn off the wheel, elevator, belt, fan in sequence. Turn on the pulse, let the a jet of compressed air to purge the filter to make it clean.



Any emgerency, push the emergency button, the whole machine will stop immediately.





Welcome to watch our videos,
