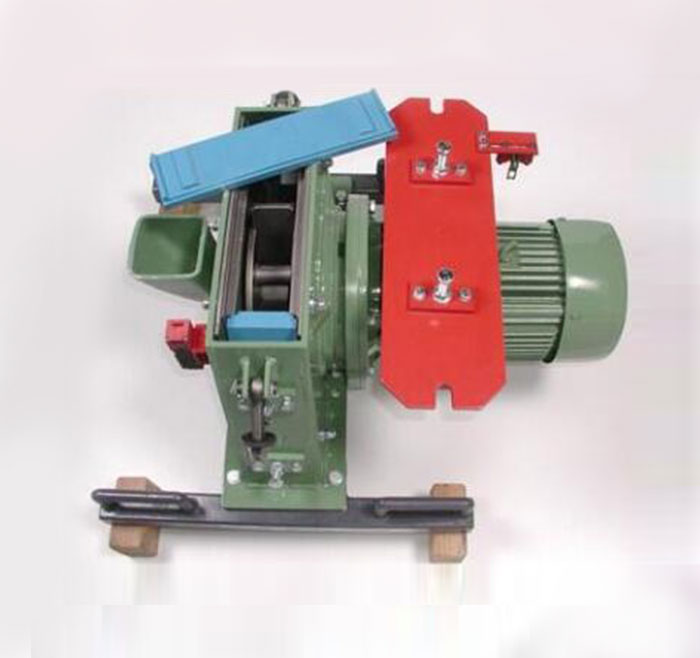

The TS Blast Wheel is a high‑efficiency component used in shot blasting machines, blast turbines, and abrasive blasting systems. It accelerates steel shot or other abrasive media to clean, strengthen, and prepare metal surfaces. Blast wheels are widely used in industrial surface treatment processes including rust removal, descaling, and coating preparation.
Our blast wheels are engineered for high blasting efficiency, stable performance, and long service life. The optimized impeller design and blade arrangement improve abrasive acceleration and ensure uniform blasting coverage.
The TS blast wheel assembly consists of several important components that work together to generate high‑speed abrasive flow.
✔Impeller for accelerating abrasive media
✔Blades for projecting abrasive material
✔Wheel disc for structural support
✔Control cage for directional abrasive flow
✔Protective housing for safe operation
The specially designed wheel disc increases abrasive acceleration and achieves blasting efficiency up to 16 kg/min·kW. This improves surface cleaning performance and increases productivity.
The blades are installed from the center of the impeller and secured by centrifugal force during operation. No special tools are required, allowing fast maintenance and easy replacement.
Impeller fixed: 8pcs blade long groove and hole shape and position tolerances is very strict, we use the machining center which is for imported components. The process can be dividing - impeller on the rough milling and finish milling, drilling, reaming, indexing and reaming process once completed, to ensure the balance of the wheel operation, the balance torque is between 12 ~ 15N / mm (18.6N - mm), while greatly reducing the equipment noise.
Key components including blades, impeller, and control cage are made from high chromium wear‑resistant cast iron. This material provides excellent durability even under continuous blasting.
| Type | Model | RPM | Wheel Diameter (mm) | Blade Width (mm) | Shot Flow (kg/min) | Motor Power (kW) |
|---|---|---|---|---|---|---|
| Direct Drive | Q037Z7.5 | 2930 | 380 | 62 | 120 | 7.5 |
| Direct Drive | Q037Z11 | 2930 | 400 | 80 | 180 | 11 |
| Direct Drive | Q037Z15 | 2930 | 400 | 80 | 240 | 15 |
| Belt Drive | Q034 | 2450 | 420 | 80 | 180‑300 | 11‑18.5 |
| Belt Drive | Q035 | 2450 | 500 | 100 | 360-720 | 22-45 |
| Belt Drive | Q063 | 2940 | 330 | 55 | 240-400 | 15-22 |
| Belt Drive | Q065 | 2100 | 457 | 75 | 480-900 |
✔Hanger type shot blasting machine
✔Roller conveyor shot blasting machine
✔Tumble belt shot blasting machine
✔Steel plate shot blasting machine
✔Steel structure manufacturing
✔Shipbuilding industry
✔Foundry and casting cleaning
✔Automotive parts manufacturing
✔Construction machinery production
A blast wheel is the core component of a shot blasting machine. It accelerates abrasive media at high speed to remove rust, scale, and contaminants from metal surfaces.
The service life depends on abrasive type, working hours, and operating conditions. With proper maintenance and quality materials, blast wheels can provide long‑term stable operation in industrial environments.
