Suction Blasting Cabinet
Manual Blast Cabinet

Suction Blasting Cabinet

Easy operate, small occupation
Product Detail



Description



Siphon cabinets, also know as suction cabinets, use much less compressed air and are generally smaller units making them perfect for smaller workshops or lower productivity environments. Siphon cabinets uses a compressed air stream inside a siphon blast gun to create a vacuum in a chamber creating a negative pressure, pulling the abrasive into the nozzle.


A Blast Cabinet is a unit where an abrasive blasting process is utilized inside a closed loop system. Unlike the conventional blast pots, the cabinets allow the operator to blast the workpiece, keeping the spent abrasive contained inside protecting the operator and surrounding area while recycling the abrasive continuously.


Main Characteristics of the Machine:

  • Right side door for easy loading;

  • Resilient-to-scratches LED lighting system for exceptional visibility;

  • Blow-off (blowing) gun;

  • Foot pedal operated blasting;

  • Bag filter make sure this machine is dustless while blasting.


Available Abrasive: Mesh 36-220 aluminium oxide, glass bead, zircon sand, carborundum, silicon carbide and etc.

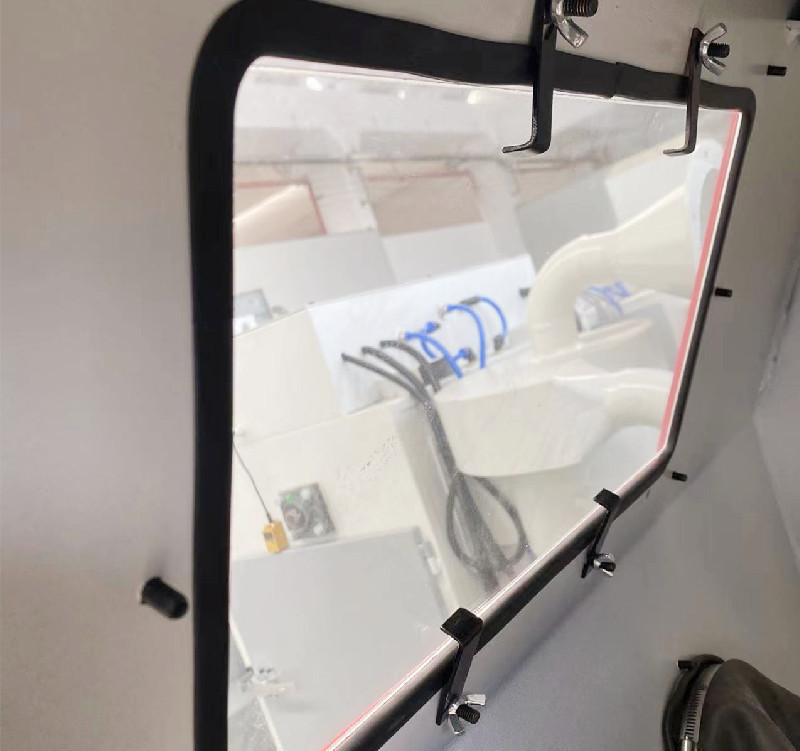

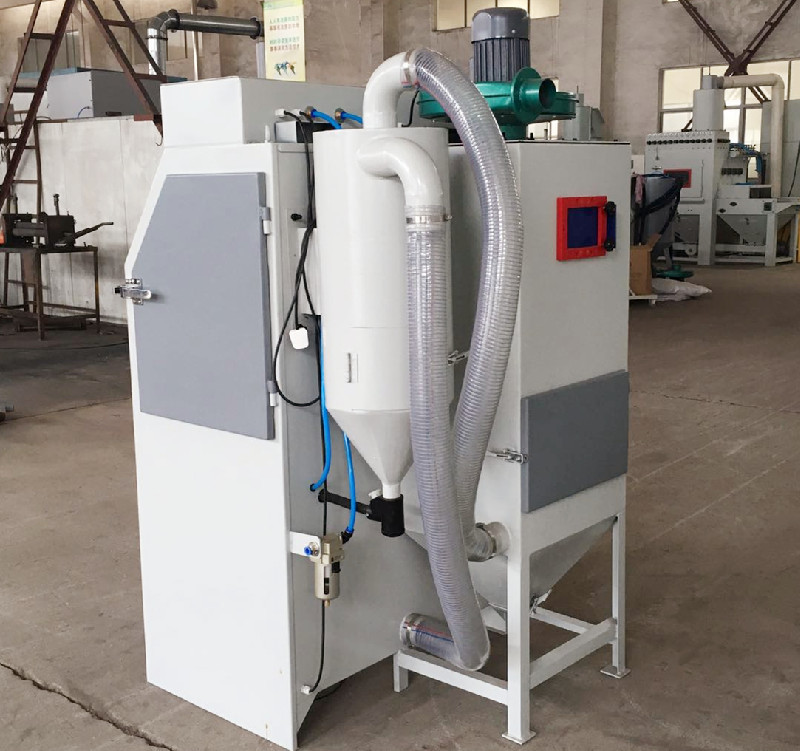

Machine Photos



siphon blast cabinet.jpg


Technical Parameter



Model

Operating Zone Size(mm)

Overall Size(mm)

Fan

Air Consumption(Approx)

TS9060A

900x600x600

900x1000x1600

550W

0.8-1.2m³/min

TS1010A

1000x1000x800

1000x1500x1700

550W

0.8-1.2m³/min



Application



TS blast cabinet is suitable for less demanding users who still expect reliable and high-quality blasting cabinet.


Widely used in,

  • Removing rust, mill scale, heat treatment scale, and carbon build up from metals;

  • Strip paint, powder coating, plating, and anodizing from parts for rework;

  • Eliminate burrs, parting lines, flashes, and other defects from castings and injection-moulded parts;

  • Remove residual sand from castings;

  • Beautify steel, stainless steel, aluminium, brass and other metals with a uniform satin finish;

  • Etch artwork and apply lettering on glass, stone, plastics, metal and other materials;

  • Clean release agents and material build up from moulds.


sand blasting 3_副本.jpg
