A hanger shot blasting machine is designed for efficient surface cleaning and preparation of large or complex parts. It utilizes a hanging system to optimize blasting coverage, ensuring thorough cleaning in various industrial applications, enhancing productivity and quality.Hanger type shot blasting machine with High Blasting Efficiency without foundation job

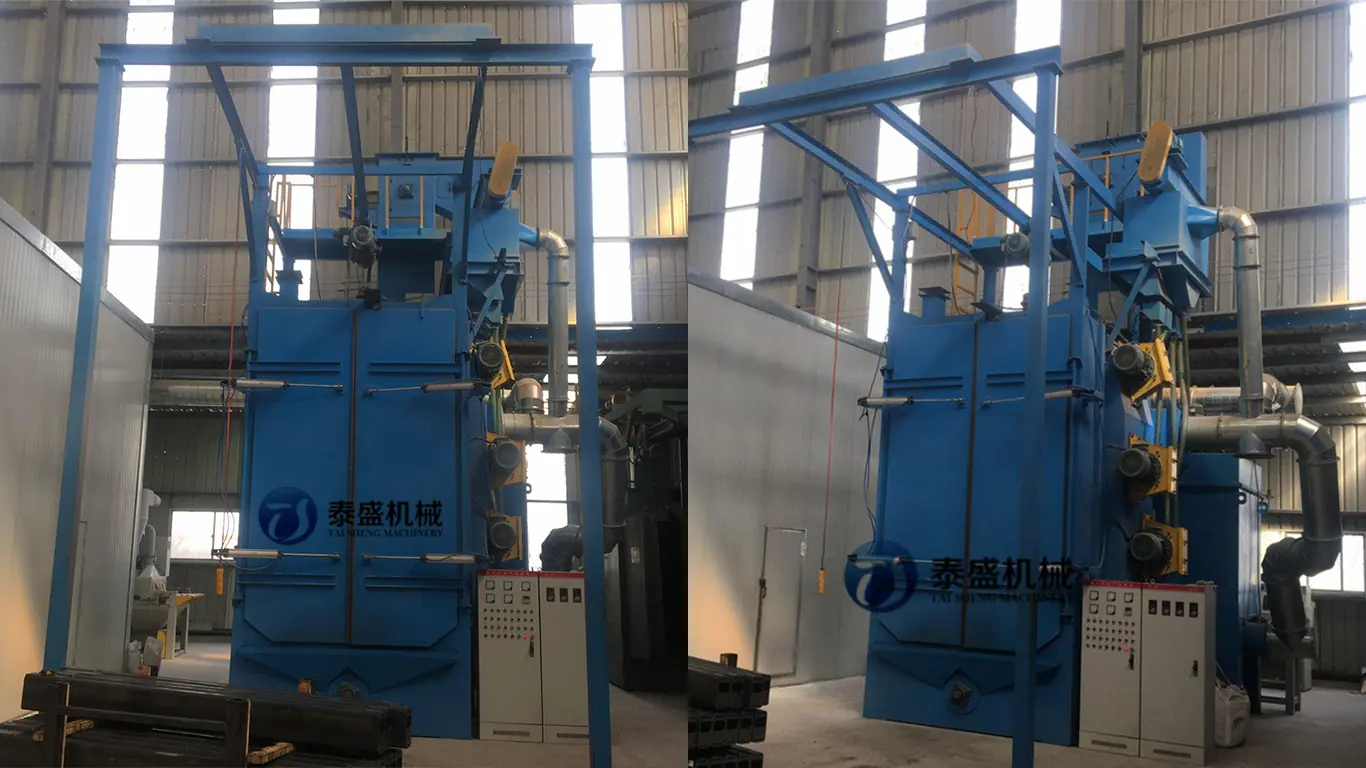

The TSD1527-1B hook type shot blasting machine is a shot blasting machine for steel structure designed for rust removal, descaling and surface cleaning of metal parts.
It also works as an industrial rust removal machine for metal parts, widely used in casting, welding and fabrication industries.
Compared with manual cleaning methods, the automatic monorail hanger blasting system improves cleaning efficiency, reduces labor costs, and provides more stable surface treatment quality.
This shot blasting machine for steel structure removes rust, welding slag and oxide scale from beams and fabricated frames.
As a casting surface cleaning machine, it removes sand, burrs and oxidation layers from steel and iron castings before coating or machining.
Widely used for chassis parts, suspension systems, engineering machinery, and heavy-duty metal components.
This industrial rust removal machine for metal parts is designed for heavy-duty surface cleaning before painting, coating or welding.
The workpieces are suspended on rotating hooks connected to an overhead monorail conveyor system and automatically transported into the blasting chamber. High-speed blast wheels project steel shot onto the surface from multiple angles to remove rust, oxide scale, and contaminants.
The rotating hook type industrial shot blasting equipment ensures complete 360-degree cleaning coverage while minimizing workpiece collision and protecting the workpiece surface.
No deep foundation pit required, reducing installation costs and simplifying factory setup.
Mn13 wear-resistant liners improve durability and reduce maintenance frequency.
The enclosed chamber and dust collection system reduce dust emissions and improve workplace safety.
Integrated abrasive recycling and automatic controls improve productivity and reduce labor intensity.
| Key Feature | Hanger Type | Tumble Belt Type |
|---|---|---|
| Suitable Workpieces | Medium to Large Parts | Small Bulk Parts |
| Collision Risk | Low | Higher |
| Surface Protection | Excellent | Moderate |
| Typical Applications | Steel Structures, Castings | Fasteners, Chains |
| Model | TSD1527-1B Monorail Hanger Shot Blasting Machine (Automatic) |
|---|---|
| Max Product Size | Φ1500 x H2700mm |
| Cleaning Requirement | Meet GB8923-88 A-B Sa2½, surface roughness Ra12.5 |
| Hanger Lift Capacity | 1000kg/hook |
| Cleaning Time | Casting 8-15min; Forging 5-8min |
| Recommended Abrasive | Φ0.8～Φ1.2mm steel cut wire or steel shot |
| Initial Abrasive Feed | 800kg |
| Pit Foundation | Not required |
| Overall Dimensions (LxWxH) | 5500mm x 5200mm x 7400mm |
| Total Power | ~62.2KW |
The shot blasting machine price depends on configuration such as chamber size, blast wheel quantity, automation level and dust collector system.
Hanger type shot blasting machines are ideally suited for heavy steel structures, castings, forgings, welded parts, commercial automotive components, and other irregular medium-to-large metal workpieces that require precise surface preparation before coating.
The TSD1527-1B features an advanced pit-free floor structure design. Unlike traditional blasting equipment, it does not require deep pit excavation, significantly reducing civil construction difficulty, preventing water leakage, and saving installation costs.
Most industrial systems utilize cast steel shot or steel cut wire shot. The choice of abrasive material, hardness, and diameter depends entirely on your specific workpiece material, desired surface roughness, and cleaning efficiency requirements.
The blasting cycle time is highly efficient. In typical industrial applications, the cleaning cycle is typically between 5 and 15 minutes.
