TS Machinery - Specialize in fabricating shot and sand blasting equipment
for surface treatment industry more than 10 years.

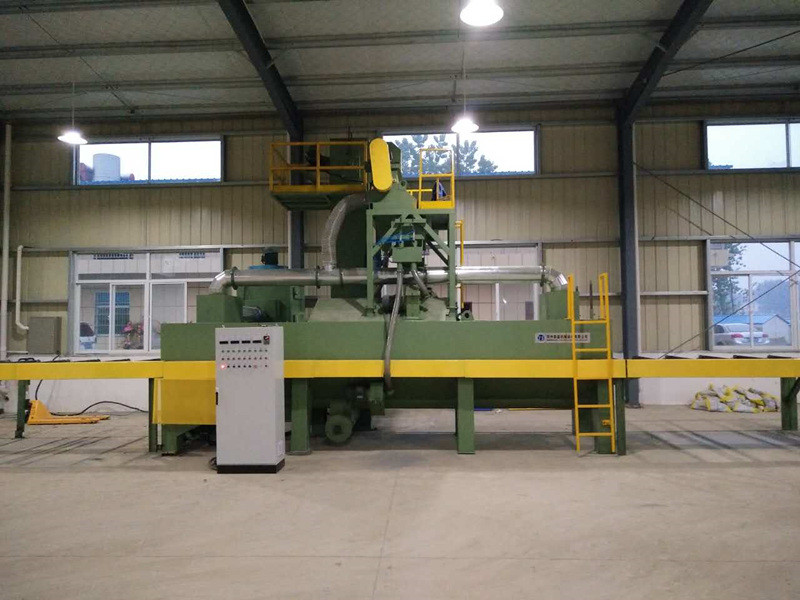

Products: Steel Plate Shot Blasting Machine

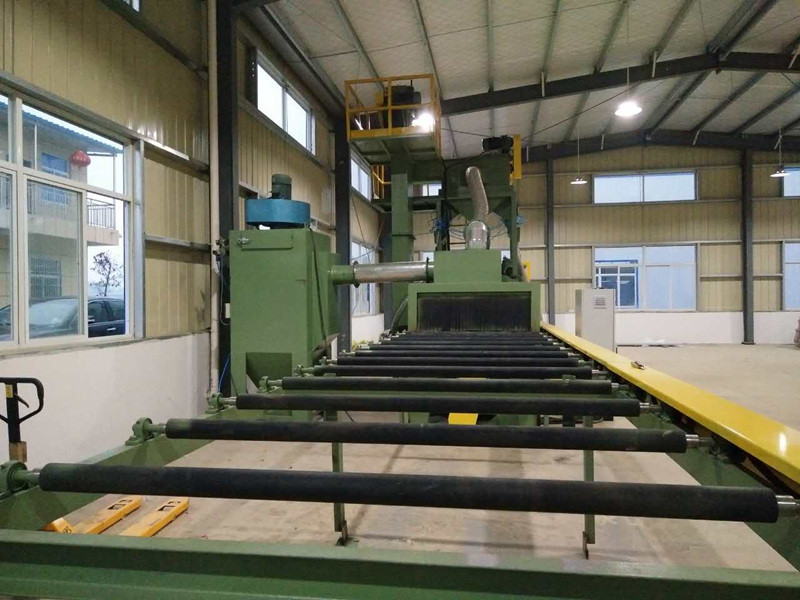

TS Machinery offers a wide range of roller conveyor shot blasting machines from small simple machines to construction blasters, heavy duty machines and complete preservation product line.
Application:
They are mostly used for descaling, derusting, paint removal, paint preparation, deburring and general surface preparation prior welding, cutting, machining and burning operations.
Advantages of using TS Roller Conveyor Blast Machine:
● High throughput with optimum Blast coverage, getting good cleaning result
● Equip with manganese steel plate as the protective ling, more durable.
● Mounted brush and blower to clean steel plate surface after blasting
● Eco-friendly, with high efficiency dust collector system
● Treat various of plates and profiles.
● Flexible design
Technical Data
Item | Q698 | Q6912 | Q6915 | Q6920 | |
Steel Plate to be Blasted | Max. Width(mm) | 800 | 1200 | 1500 | 2000 |
Length(mm) | <12000 | <12000 | <12000 | <12000 | |
Thickness(mm) | 5-60 | 5-60 | 5-60 | 5-60 | |
Entrance W x H(mm) | 1000 x 400 | 1400 x 400 | 1700 x 400 | 2200 x 400 | |
Cleaning Speed(m/min) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | |
Power of Blast Wheel | 11 | 15 | 15 | 15 | |
No. Of Blast Wheel | 4 | 4 | 4 | 6 | |
Initial Feeding(kg) | 4000 | 4000 | 4000 | 4500 |
Note: our equipment can be designed according to customer special requirements
