Rotary Drum Sand Blast Cabinet

    • Rotary Drum Sand Blast Cabinet
Product details



Machine Description



Sand blast cabinet with rotary basket are used for whole treatment of small metallic items, plastic and thermosetting parts, such as fastener, nutsThe pieces to be treated are placed inside a tumble basket, which has particular form and tilt. The rotation is assure by speed motor variate. basket of sandblasting.jpg


The cycle includes: sandblasting and blow for dusting of the treated pieces. While the parts slowly tumble, two or three guns shoot the abrasive/micro balls against pieces, which, at the end of the cycle, are uniformly treated. Usually one can obtain very good results by applications shorter than 6-7 min/batch. The whole treatment cycle is completely automatic and is controlled by proper timers, programmable by means of suitable electrical device


TS9080A is a complete sandblasting machine with equipped with a removable tumble basket for larger parts and dust collector and abrasive separator reclaimer for operation using 60-220mesh abrasive.


rotary drum sand blasting machine.jpg

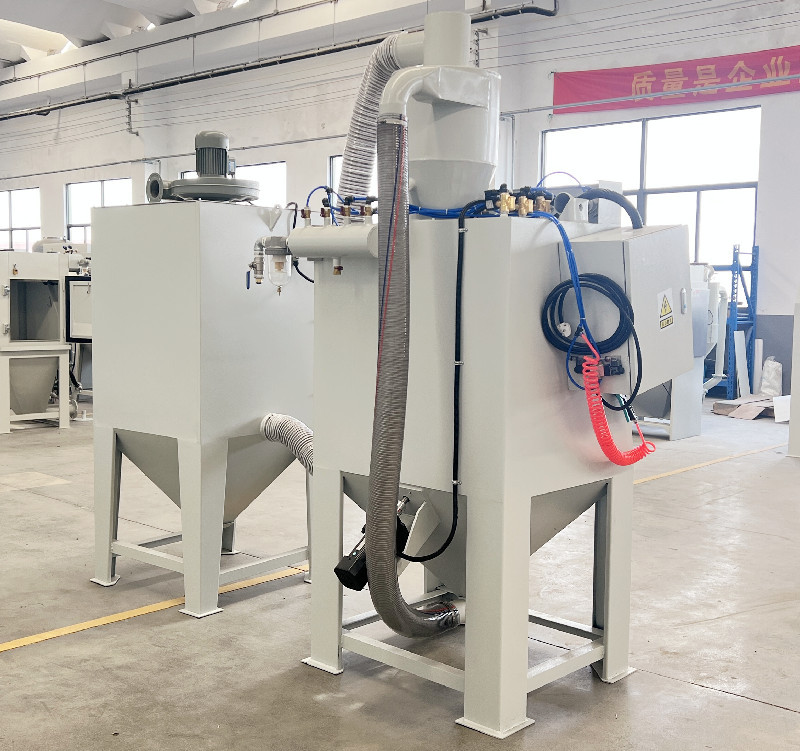

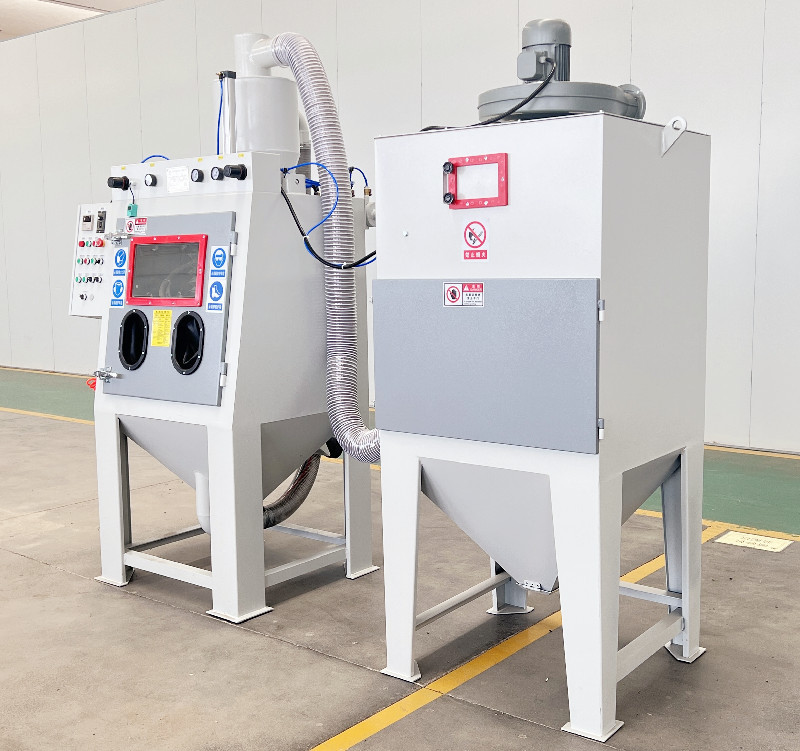

Product Photos



8731555659739246.jpg 4031555659749881.jpg



Technical Parameter



No.

Model

TS-9080A Tumble Basket Sand Blasting Machine

1

Overall Machine Size include Dust Collector

2100mm x 900mm x 1600mm(L×W×H)

2

Cabinet Size

900mm x 800mm x 580mm(L×W×H)

3

Power Supply

220V,50HZ

4

Light

220V,13*2 W

5

Compress Air Required

Working Pressure 5-7bar(kg/cm2); Air Consumption 0.8-1.2m3/min/gun; normally equipped with 2pcs guns

6

Fan

220V,50HZ,750W

7

Dust Collector

Bag Filter  or Cartridge Filter

8

Basket Maximum Bearing

15-20kg/batch or 1/3 of basket

9

Gross Weight

350kg




Application



Tumble Basket Sand Blasting Machine is designed for cleaning small parts such as the bolts,  PMMA, zinc aluminum die casting, pneumatic screw driver, tools, sintered metal product and etc.


Available Abrasive: aluminium oxide, glass bead, zircon sand, carborundum, silicon carbide


Advantage,

1, Good for small parts, which is anti-collision, 10-15kg/batch

2, Automated, easy to operate

3, Very convenient for unloading the products

4, Save abrasive, equip with cyclone separator, can separate abrasive 60 # - 320 #.

5, Drum rotational speed can be adjustable.

6, High efficiency and good blasting result, blasting gun with a remote control device,


blasting result of basket sand blaster.jpg



Welcome to watch our video,
