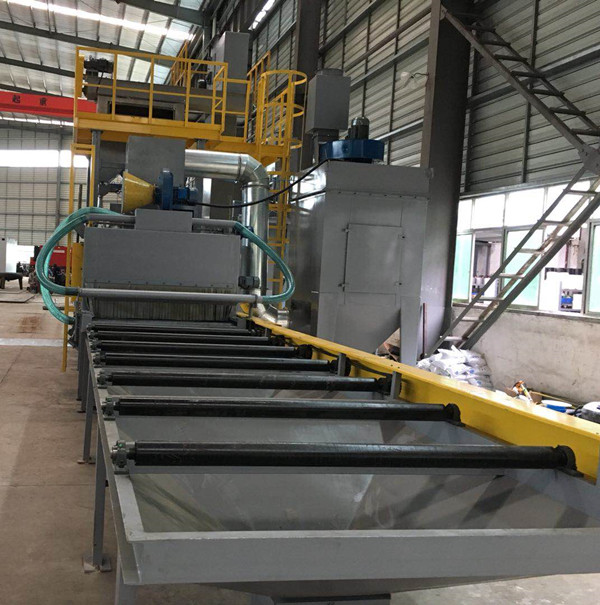

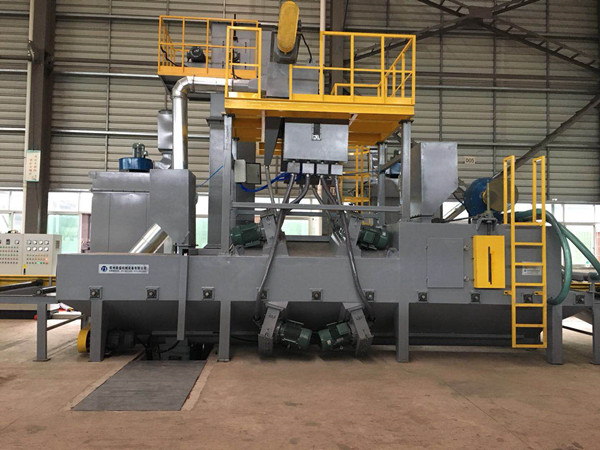

Roller Conveyor Blast Machine

    • Roller Conveyor Blast Machine
    • Roller Conveyor Blast Machine
    • Roller Conveyor Blast Machine
Product details

TS Machinery offers a wide range of roller conveyor shot blasting machines from small simple machines to construction blasters, heavy duty machines and complete preservation product line.


Machinery Descrption

The equipment mainly consist of Roller Conveyor System, Blast Cabinet, Shot Blasting System, Shot Cleaning System, Abrasive Recycle System, Dust Collector System and Electrical Control System.


Blast Cabinet

Shot blasting machine is different with other machines, which is easy to have the wearing parts. So durable of the machine is significant important. TS Machinery using SP Mn steel plate fully convered the blasting cabinet as protective. Besides, at the plate joint, there manganese strips welded onto the cabinet which can fully behind the gap.



Blast wheel is mounted on blasting cabinet on different direction, there is several blast wheels at the upper and lower part according to different products. The arrangement is tested and verified by 3d dynamic presentation before fabricated, can achieve the best cleaning result.



Brush & Air Blower

Clean up the shot remains on product surface after blasted, normally air blower is standard configuration, brush is optional choice which is good for flat products such as steel plate.


Abrasive Recycle System

This system is aim to collect the good shots for recycle using, all by transmission parts. Auger and elevator to transport the shots from the bottom to top, separator is key factor to effect on the blasting efficiency and working environment, if without good design, the machine will be with low working efficiency and bad working environment.


Dust Removal System

Cartridge filter is a key component of dust removal part, its working conditions directly affect the indoor environment and outdoor emission standards. By increasing the filter area of the dust collector, to reduce the filtration speed, thereby reducing the amount of dust emission.


Electrical Control System                              380V/50Hz/3Phase + N + PE(customize is available)

The whole system is equipped with automatic/manual switch, electrical interlock, self-lock, fault alarm emergency stop and other safety protection functions to ensure the safe operation of the equipment.



Application:

It is mainly used for steel plate, structure and H beam surface cleaning and strengthening, descaling and eliminate internal stress and increase the paint adhesion, etc. After treatment, the fatigue strength increased, the steel surface and inner quality improved. Process Procedure: Loading - workpiece moving in - blasting - cleaning shots up from workpiece surface - workpiece moving out - discharge.


Technical Data

Model

TS-1220-8

TS-1525-12

TS-2030-14

Workpiece Size

Section(WXH)

1200*2000mm

1500*2500mm

2000*3000mm

Length

3000-15000mm

3000-15000mm

3000-15000mm

Surface Degree

Cleaning Result

A-B Sa2-2.5

A-B Sa2-2.5

A-B Sa2-2.5

Roughness

15-50μm

15-50μm

15-50μm

Blast Wheel

Quantity

8

12

14

Shot Volume

8*180kg/min

12*180kg/min

14*180kg/min

Power

11kw

11kw

11kw

Max. Loading of Roller

1000kg/m

1000kg/m

1000kg/m

Roller Transport Speed (variable speed)

0.5-4m/min

0.5-5m/min

0.5-4m/min

Air Process Volume

25000m³/h

30000m³/h

35000m³/h

Abrasive Recycle System

90T/h

130T/h

150T/h

Total Power

≈141kw

≈212kw

≈253kw

Note: our equipment can be designed according to customer special requirements
