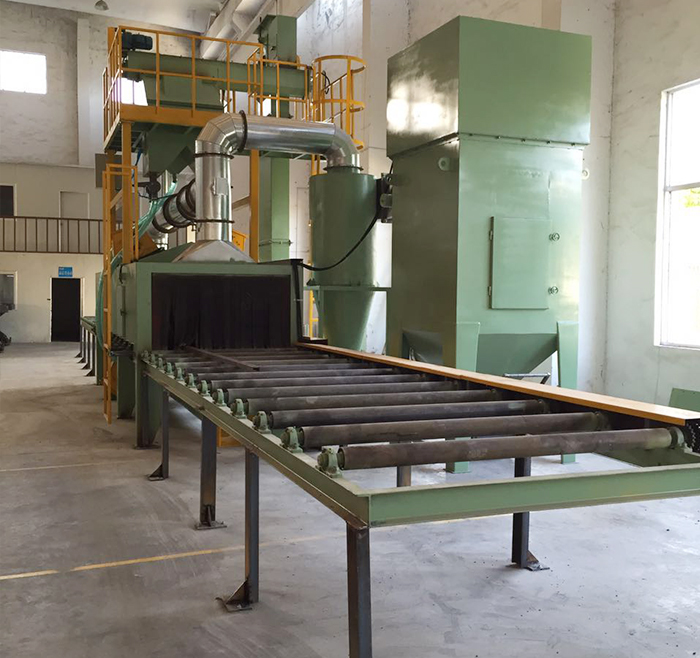

TS Machinery offers a wide range of roller conveyor shot blasting machines from small simple machines to construction blasters, heavy duty machines and complete preservation product line.
Application:
They are mostly used for descaling, derusting, paint removal, paint preparation, deburring and general surface preparation prior welding, cutting, machining and burning operations.
Advantages of using TS Roller Conveyor Blast Machine:
● High throughput with optimum Blast coverage, getting good cleaning result
● Equip with manganese steel plate as the protective ling, more durable.
● Eco-friendly, with high efficiency dust collector system
● Treat various of plates, beams and complex structures.
● Flexible design
Model | TS1003-4 | TS1305-4 | TS1606-4 | |
Workpiece Size | Section（WXH） | 800*200mm | 1000*350mm | 1300*450mm |
Length | 3000-6000mm | 3000-6000mm | 3000-6000mm | |
Surface Degree | Cleaning Result | A-B Sa2-2.5 | A-B Sa2-2.5 | A-B Sa2-2.5 |
Roughness | 15-50μm | 15-50μm | 15-50μm | |
Blast Wheel | Quantity | 4 | 4 | 4 |
Shot Volume | 4*65kg/min | 4*120kg/min | 4*180kg/min | |
Power | 4.0kw | 7.5kw | 11kw | |
Max. Loading of Roller | 500kg/m | 800kg/m | 1000kg/m | |
Roller Transport Speed (variable speed) | 0.4-3m/min | 0.4-3m/min | 0.4-3m/min | |
Air Process Volume | 5000m³/h | 8500m³/h | 8500m³/h | |
Abrasive Recycle System | 15T/h | 30T/h | 50T/h | |
Total Power | ≈27.4kw | ≈48.9kw | ≈73kw | |
